FlexLink R25C combining
Extended L-Band Switch Matrix 64:64

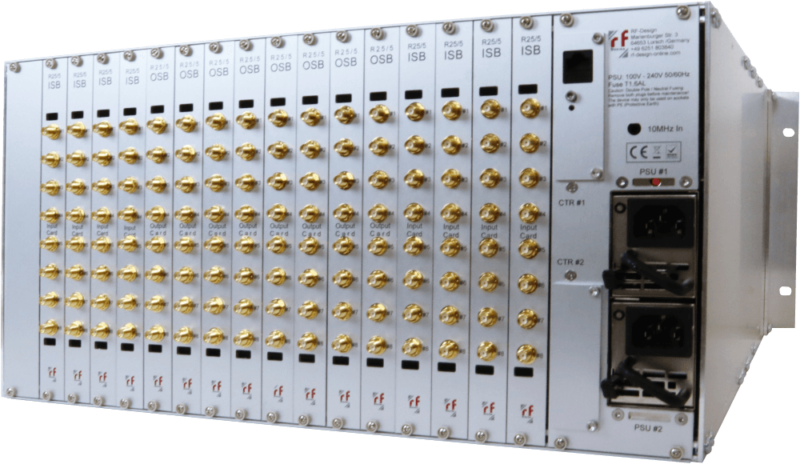

The FlexLink R25C represents an unique, innovative & clever L-Band Combining Matrix, built into a 5RU/19″ rack mount chassis with only 500mm depth. It comes as fan-in/combining system enabling to switch/route various inputs to a dedicated output. The 5RU/19” chassis can be assembled with various input/output configurations from 8:8 to 64:64 (symmetrically & unsymmetrically)
The FlexLink R25C Combining Matrix system is a future proof solution coming with widened bandwidth supporting the extended L-Band (850 – 2450MHz) frequency range making it a perfect solution also for KA-Band and HTS applications.
The flexible modular design makes it possible to mix the input and output connectors with various connector types (50Ohm SMA or BNC) giving the operator the flexibility for future expansions.
Features & Benefits
Space saving 5RU/19″ modular rack mount design
Extended L-Band frequency 850 – 2450MHz
From 8:8 to up to 64:64 inputs
Coax inputs & outputs 50/75Ohm SMA(f), F(f) or BNC(f) or optical inputs and outputs (mixed input & output configuration)
Variable gain control (@ any input and @ any output)
Slope-equalization (@ any input and @ any output)
Threshold alarming (local and remote signaling)
RF power monitoring, dynamic range (@ any input/output)
Internal monitoring of all active components
Switching time is 50 ms
Signal path backup routing with reverse switch-back
Hot-swappable controller card and matrix switch boards
10.4″ front-side touchscreen LC-Display for local configuration
1000MBit Ethernet-Interface (WebGUI, SNMPv2c)
